JLH Large Format Gantry Laser Cutting Machine Series
The JLH Large format gantry laser cutting machine series is a type of laser cutting equipment that is mainly used to cut metal materials, such as carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, copper, and other metal materials. It has a wide range of applications in various manufacturing and processing industries, such as sheet metal processing, aerospace, electrical appliances, automobiles, machinery, ships, metallurgical equipment, elevators, household appliances, advertising, and metal external processing.
JLH Large Format Gantry Laser Cutting Machine Series Features
- Large format gantry fiber laser cutting machine It is suitable for high-power laser cutting of medium and heavy plates. The laser selection range is 6000W-40000W. Long-term batch cutting of 6-50MM plates.
- Large format, wider range of format processing options Width: 2500-5000mm, length: 8000-26000mm.
- Segmented spliced bed structure
- Segmented spliced bed structure The length of the segmented bed can be customized. Modular installation, efficient and convenient. The separation structure of the material table and the bed is more suitable for thick plate cutting without heat transfer.

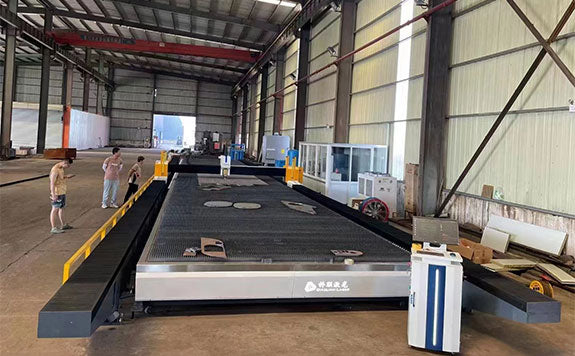

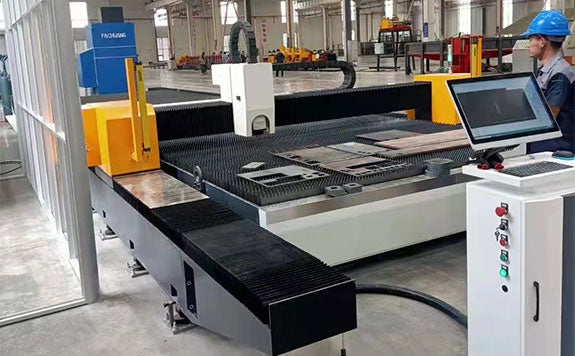

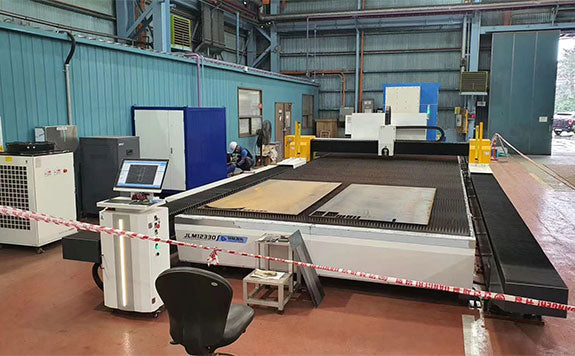

- Perfect dust removal and environmental protection system Segmented double suction dust removal design structure, hurricane suction, strong negative pressure, let dust and smoke move with the wind. Within a range of 1 meter, always keep the air door in one area open to vacuum, and the air door in other areas is closed, the wind is strong, and the dust removal is smooth and clean.

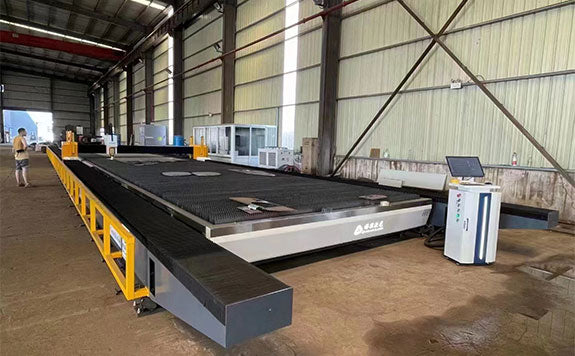

- Bevel function Cut V/A/X/Y/K bevels.
Advantages of JLH Format Gantry Laser Cutting Machine Series
Steel Plate Welding Bed
The Qiaolian metal laser cutter body is welded by sheet metal, the equipment within 13m is integral, and the upper gantry milling machine is processed at one time. Body advantage: more sturdy and stable. Long use time to ensure cutting accuracy.

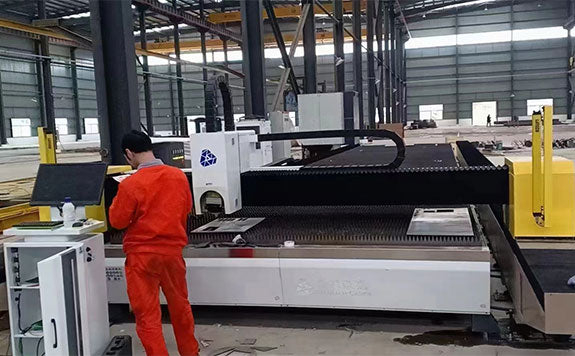

Cast Aluminum Beam
It adopts aluminum cast beam, which is light weight, good dynamic response, faster acceleration and better comprehensive cutting effect.

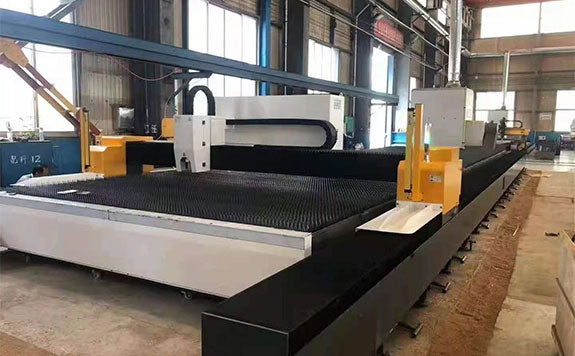

High-end Intelligent EtherCAT Bus System
Specially designed for ultra-high power metal laser cutting machines above 8KW, FSCUT8000 is an EtherCAT bus system. It has the characteristics of out-of-the-box, easy installation and adjustment, and complete functions. It supports customization, automation and information solutions and is the market-leading EtherCAT laser cutting control system.
Intelligent bus control cutting head, Active Collision Prevention
The focus can be adjusted according to the thickness of the material, which is suitable for multi-focal lengths. It can reduce punching time, improve punching quality, and can sense the surrounding environment and intelligently lift and avoid obstacles.
It adopts flying-cut micro-connection to prevent sheet warping. It can also achieve high speed and high stability during cutting.
