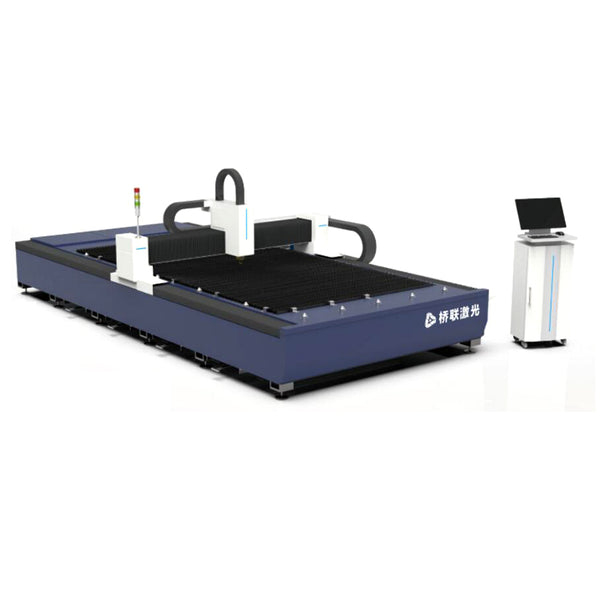

JLN High Power Single Table Laser Cutting Machine Series Features
Machine cutting process is totally visible. Easy to load and unload materials from the front, left and right sides.
Our product is easy to install and quick to put into production, minimizing your waiting time for work. Designed with a high-standard sealing style to prevent dust from entering and components from being ignited.
High power laser cutting machine is suitable for 8000-12000W. Stable performance and long service life. The machine has good dynamic performance and high precision. It can be used for cutting metal
JLN High Power Single Table Laser Cutting Machine Series Advantages

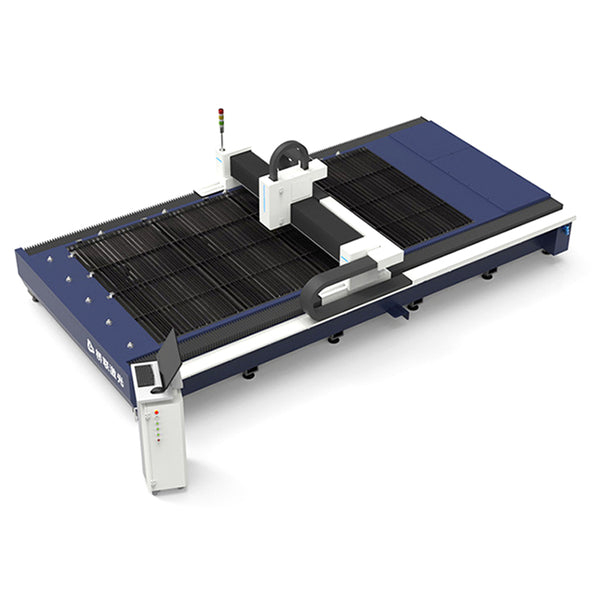

Steel Plate Welding Bed
Plate welded heavy worktable, no deformation for 20 years, suitable for ultra high power 8000-12000 watt laser.. The increase in weight is very beneficial to the cutting speed of the laser cutter.
In order to reduce the damage to the table when the laser is working, Qiaolian innovates the new table, Add refractory bricks, so that the life of the fiber laser cutting machine table will be doubled.
Cast Aluminum Beam
Using infinite analysis to optimize the cast aluminum beam, the weight is lighter, the deformation is smaller, and it meets the requirements of high-speed cutting.
Drive Technology And Parts
Double slider support, better than single support cantilever structure, small deformation, good rigidity.
Minimal synchronization tolerances, high positioning and high speed.
X/Y axis adopts high-precision rack and pinion, low clearance reducer to ensure smooth movement.
Z-axis adopts high-precision ball screw, linear guide rail guide, stable movement and fast response.
FSCUT6000 high power laser cutting system is a bus laser cutting control system with high cost performance applicable to 6-12KW power range. Easy to install, easy to debug, excellent performance and complete scheme. It is applicable to the processing of medium and thick plate metal parts such as steel structures, iron towers, ships, etc.
1. Non-sensitive perforation -- improve sheet processing efficiency
2. Traceless micro-connection -- batch blanking is easy
3. Disc centering -- automatically locate the center point on the circular plate and process it
4. Lightning perforation - fast frequency conversion perforation to improve the efficiency of thick plate perforation
5. Perforation slag removal - rapid slag removal after perforation to improve the quality of thick plate perforation
6. Intelligent vibration suppression - Z-axis real-time automatic adjustment to reduce cutting jitter abnormality
Imported Parts, Precision Guaranteed
Equipped with Japan high power servo motor and drive
Reducer, gear and other core transmission components are imported from Japan
High-precision rack, guide rail and are all world famous brands
Top Brand Laser Power
IPG Laser Power
Max Laser Power
Raycus Laser Power
Quality Control System
Perfect quality system, strict assembly process quality inspection, high-precision inspection equipment, to ensure that each delivered equipment can meet the company's factory quality standards.
