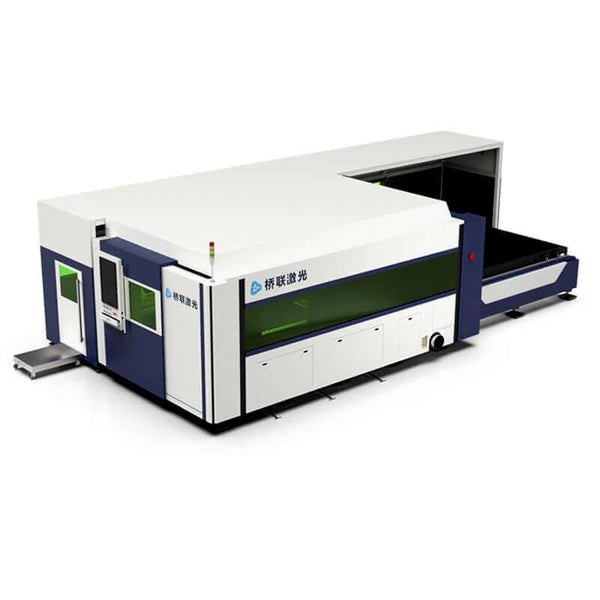

Sheet Tube Integrated Laser Cutting Machine
It can cut both sheet and tube metals, replacing a professional sheet laser cutting machine and tube laser cutting machine in total. For users, it will expand their scope of cutting materials and enhance their market competitiveness.
* Save purchasing costs
* Improve cutting efficiency
* Accept more diversified orders
4.With a camera, the cutting situation is clear at a glance.
Steel Plate Welding Bed
1)Our machine body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.
Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.
2)Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;
Cast Aluminum Beam
Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;
Professional Laser Cutting Control system

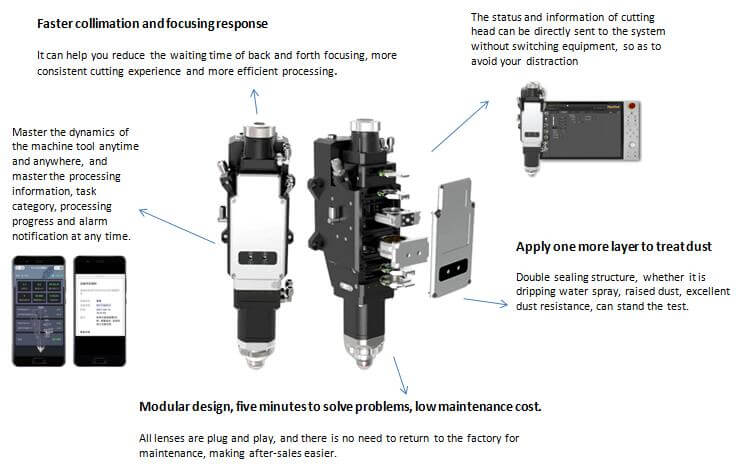

Intelligent bus control cutting head, Active Collision Prevention
Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.
Imported Parts, Precision Guaranteed
Equipped with dual
high-powered servo motors and drivers which from German
|Core transmission parts like speed reducer and gears are imported from Japan||
guide rails and ball screws are produced by world-famous brands.
Top Brand Laser Power
(Meet different customer needs)
|IPG Laser Power||Max Laser Power||Raycus Laser Power|
Quality Control System
Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;
|Working Area (L*W)||3000*1500mm||4000*1500mm||4000*2000mm||6000*2000mm||6000*2300mm||6000*2500mm||8000*2300mm||8000*2500mm|
|Diameter(mm)||120 / 160 / 220 / 280 / 320 / 350|
|Tube length(mm)||3000 / 6000 / 7000 / 9000|
|Maximum revolutions of chuck(RPM)||80-120|
|X/Y-axis Positioning Accuracy||±0.03mm||±0.03mm||±0.03mm||±0.03mm||±0.03mm||±0.03mm||±0.03mm||±0.03mm|
|X/Y-axis Repositioning Accuracy||±0.01mm||±0.01mm||±0.01mm||±0.01mm||±0.01mm||±0.01mm||±0.01mm||±0.01mm|
*The above data are for reference only, subject to the actual product!
